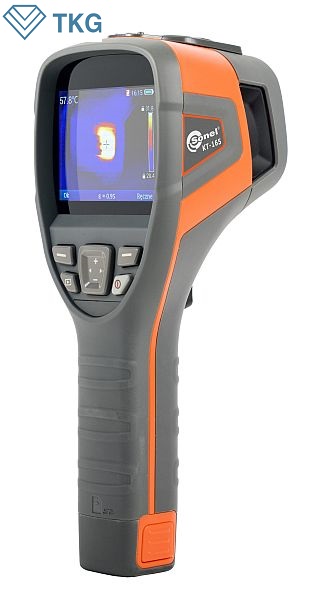

Camera đo nhiệt độ SONEL KT-165 (160x120 pixels,- 20°C...350°C)

DESCRIPTION

Solid and portable tool for daily tasks. This is the main goal when designing a line of budget cameras with a visible spectrum lens. Modern IR sensors available in three resolution versions are supported with the visible spectrum lens, which allows operation in four modes: IR, visual, PIP (picture in picture) and MIF (contours visible on IR image). A highquality image is presented on a clear display with backlighting adjustment. Despite the low price, the camera has been equipped with a set of the essential, but necessary tools for analyzing and correcting images/measurements. The results of the work can be saved on an SD card or sent via USB or WiFi for further processing. Professional software for thermogram analysis completes the unit. This makes the camera an ideal tool for maintenance personnel, electricians, the construction industry and others, in their daily tasks. Thanks to state-of-the-art technologies and solutions, the cameras of the Sonel company ensure full control and flexibility in various situations, and are an ideal tool for both novice users and professional thermographic inspectors.

Camera features

• solid and portable tool,
• intuitive user interface
• 1-hand operation,
• high-capacity, replaceable Li-ion battery
• different imaging modes: IR, visual, PIP, MIF
• built-in visual camera: 5 Mpx

• Technical specification KT-165
  Detector resolution	160x120
  Spectral range	8~14 µm
  Pixel size	25 µm
  Thermal sensitivity	80 mK
  Focusing	Fixed focal
  IFOV (standard lens)	3.30 mrad
  Minimum focus distance (standard lens)	0.5 m
  Lens (field of view/focal length)	30.0°*23.0°/5 mm
  Display	3.5", high-quality LCD
  Imaging mode	IR / Visual / MIF / PiP
  Zoom	x2 / x4
  Temperature range	-20°C...350°C
  Accuracy	±2°C or 2% of reading (for ambient temperatures between 15°C and 35°C and an object temperature of above 0°C)
  Image analysis mode	Temp. readings: min., max. Temp. alarm
  Palettes	6
  Emissivity coefficient	Adjustable from 0.01 to 1.00 or taken from the material list.
  Measurement correction	Settable distance, relative humidity, ambient (reflected) temperature
  Photo image format	JPG
  Video	Sending images via USB or WiFi (option)
  Built-in functions	Visual camera 5 MP
  Wireless communication	WiFi
  Interfaces	SD card port, micro USB 2.0
  Power supply	Li-ion battery (operating time >4 hours), built-in charger, AC 110-230 V (50/60 Hz) power supply adapter
  Operating temperature	-10°C...50°C
  Storage temperature	-20°C...60°C
  Humidity	10% … 95%
  Shock/vibration resistance	30 g 11 ms (IEC 60068-2-27) / 10 HZ~150 HZ~10 HZ 0.15 mm (IEC 60068-2-6)
  Housing	IP43
  Weight	approx. 0.72 kg (with battery)
  Dimensions (with standard lens and battery)	258 mm x 98 mm x 90 mm
