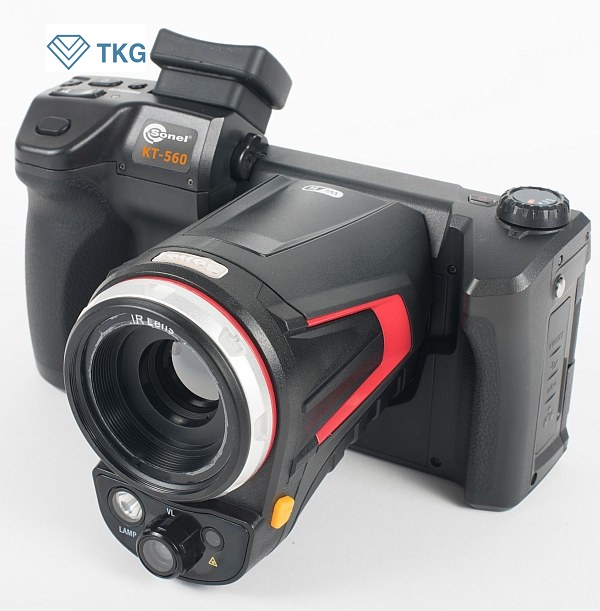

Camera đo nhiệt độ SONEL KT-560 (-20 - 800°C, 400x300 pixel)

DESCRIPTION

• Polish manufacturer of measuring instruments introduces the new high level cameras with many usable features, matched with a wide variety of IR lenses. A fully radiometric, high resolution cameras which records temperature at each point of the image. This cameras
  make shooting professional IR images fast and easy as never before. Everything closed in a durable, water and dust proof casing, small size and low weight. Can you expect more? Yes, and Sonel gives you more. More features, options and functions (compass, GPS, IR analysing functions, Wi-Fi reports printing, others). Additional we offer you fully free, professional but intuitive software for image editing and reports creating. You need only to enjoy the quality, professionalism and performance of new Sonel KT series.

  • Visible light digital camera 5MP resolution with LED lamp provides sharp images regardless of lighting conditions
  • 5 inch 720P high resolution LCD touch screen for better image clarity and easy operation

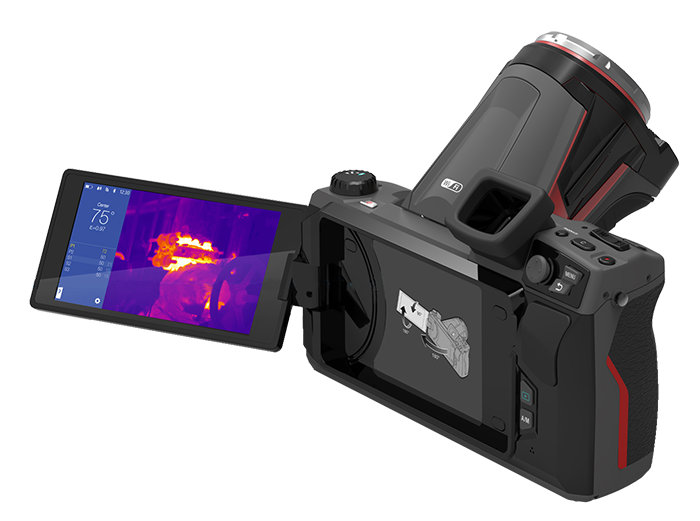

  • Rotating LCD display up to 270" for easy viewing angle
  • Rotating lens detents up to 70" for easy viewing angle
  • 4x (10x for plus version) continuous zoom with auto/motorized focus
  • Android based operation system with open platform for various APP developments and convinient program updating
  • Powerful onboard analysis and reporting capabilities
  • Multiple image presentation including IR visible, PIP and IR blending
  • WiFi
  • Optional high temperature range measuring up to 2000^oC (3632^oF) targeting electrical and industrial applications
  • Optional 11^o telephoto or 45^o wide angle lens

• KT-560:
  Detector	384 x 288
  Spectral range	8 to 14 µm
  NETD	50 mK
  Lens	21.7° x 16.4°/25 mm (optional: 40.5° x 31.0°/11.8 mm or 10.0° x 7.5°/55 mm)
  LCD	5”, 1280 x 720, HQ touch LCD
  Viewfinder	1280 x 960 LCOS screen
  Image mode	IR image/Visual image/PIP/MIF
  Zoom	1 to 4x
  Measurement Range	Filter 1:  -20°C to 150°C / -4°F to 302°F Filter 2: 150°C to 800°C / 302°F to 1472°F   Optional Filter: up to 2000oC / 3632oF
  Accuracy (Ambient: 10℃-35℃)	±2°C or 2% of reading
  Image Analysis Modes	5 points, 2 lines, 5 polygons; temperature display: min, max, avg; isotherm; dew point; temperature alarm
  Palette	8
  Emissivity	Adjustable from 0.01 to 1.00 or from the list of materials
  Measurement correction	Adjustable: distance, relative humidity, ambient temperature
  File format	JPG or RAW
  Notes to pictures	Voice note (up to 60 s), text, graphical
  Reports module	Reports to PDF, printing via Wi-Fi directly from the camera, or via PC
  Video file format	H.264 (with temperature info)
  Built-in functions	Visual camera 5 MPix, LED flashlight, GPS, laser pointer, microphon, loudspeaker, digital compass, light sensor
  Interface	Wi-Fi
  Interfejsy	SD card, LAN 1 Gb/s, mini HDMI, microUSB 2.0
  Power	Li-Ion battery (work time >4 hours), built-in charger, AC adapter 110-230 V, 50/60 Hz
  Work temperature	5°F to 122°F / -15°C to 50°C
  Storage temperature	-40°F to 158°F / -40°C to 70°C
  Humidity	10% to 95%
  Shock / vibration	25G, IEC 60068-2-29/ 2G, IEC 60068-2-6
  Casing	IP54
  Weight	2.9 lbs / 1.3 kg (with battery)
