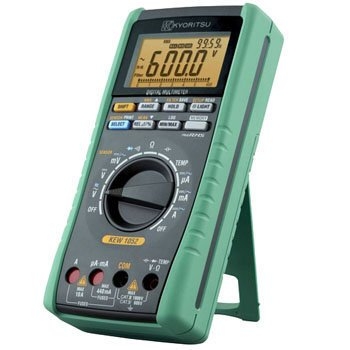

Đồng hồ vạn năng KYORITSU 1052
Model: 1052
Hãng sản xuất: KYORITSU-JAPAN
Xuất xứ: THÁI LAN
Bảo hành: 12 tháng
Thông số kỹ thuật:
Chế độ: MEAN/RMS
DC V: 600.0mV/6.000/60.00/600.0/1000V
AC V [RMS]: 600.0mV/6.000/60.00/600.0/1000V
DC A: 600.0/6000µA/60.00/440.0mA/6.000/10.00A
AC A [RMS]: 600.0/6000µA/60.00/440.0mA/6.000/10.00A
Ω: 600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ
Kiểm tra liên tục: 600.0Ω
Kiểm tra diode: 2V
C: 10.00/100.0nF/1.000/10.00/100.0/1000µF
F: 10.00~99.99/90.0~999.9Hz/0.900~9.999/9.00~99.99kHz
Nhiệt độ: :-50~600ºC (with K-type Temperature probe)
Chức năng khác: Data Hold (D/H), Auto Hold (A/H), Range Hold (R/H)...
Nguồn: R6P (1.5V)×4
Kích thước: 192(L)×90(W)×49(D) mm
Khối lượng:. 560g
Phụ kiện: Pin, Que đo, HDSD
Đồng hồ vạn năng KYORITSU 1052
| Detection mode | MEAN/RMS (switch) |
|---|---|
| DC V | 600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ [600mV/60/600/1000V], 11MΩ [6V]) ±0.09%rdg±2dgt (Basic accuracy) |
| AC V [RMS] | 600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V], 10MΩ<50pF [60/600/1000V]) ±0.5%rdg±5dgt (Basic accuracy) |
| AC V [MEAN] | 600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V], 10MΩ<50pF [60/600/1000V]) ±0.5%rdg±5dgt (Basic accuracy) |
| DC A | 600.0/6000µA/60.00/440.0mA/6.000/10.00A ±0.2%rdg±2dgt (Basic accuracy) |
| AC A [RMS] | 600.0/6000µA/60.00/440.0mA/6.000/10.00A ±0.75%rdg±5dgt (Basic accuracy) |
| Ω | 600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ ±0.4%rdg±1dgt (Basic accuracy) |
| Continuity buzzer | 600.0Ω (The buzzer turns on for resistances lower than 50±30Ω) |
| Diode test | 2.000V ±1%rdg±2dgt Open curcuit voltage: <3.5V (Approx. 0.5mA Measuring Current) |
| Capacitance | 10.00/100.0nF/1.000/10.00/100.0/1000µF ±2%rdg±5dgt (Basic accuracy) |
| Frequency | 10.00 - 99.99/90.0 - 999.9Hz/0.900 - 9.999/9.00 - 99.99kHz ±0.02%rdg±1dgt (Basic accuracy) |
| Temperature | -50 - 600ºC ±2%rdg±2ºC (with the use of K-type Temperature probe) |
| Other functions | Data Hold (D/H), Auto Hold (A/H), Range Hold (R/H), Maximum value (MAX) *, Minimum value (MIN) *, Average value (AVG) *, Zero Adjustment (Capacitor, Resistance), Save to Memory *, LCD backlight |
| Applicable standards | IEC 61010-1 CAT IV 600V, CAT III 1000V Pollution degree 2, IEC 61010-031, IEC 61326-1 (EMC) |
| Power source | R6 (1.5V)×4 (Auto power off: approx. 20 minutes) |
| Dimensions | 192(L)×90(W)×49(D) mm |
| Weight | Approx. 560g (including batteries) |
| Included Accessories | 7220A (Test leads), R6×4, Instruction manual, 8926 (Fuse [440mA/1000V])×1 (included) 8927 (Fuse [10A/1000V])×1 (included) |
Option
| Description | Model | Specification | |
|---|---|---|---|
| Crocodile clip test lead | 7234 | CAT IV 600V, CAT III 1000V | |
| AC/DC Clamp Sensor | 8115 | AC 130A / DC 180A | |
| Clamp sensor | 8121 | AC 100A | |
| 8122 | AC 500A | ||
| 8123 | AC 1000A | ||
| 8146 | AC 30A | ||
| 8147 | AC 70A | ||
| 8148 | AC 100A | ||
| Banana Ø4mm Adjuster Plug | 7146 | length:190mm | |
| USB Communication set | 8241 | USB adaptor + USB cable + DMM Software | |
| DMM Printer full set | 8249 | 8243＋8246＋8248 | |
| Printer Communication set | 8243 | Printer Adapter + RS232 cable | |
| Printer | 8246 | Printer + Thermal paper (1 roll) | |
| AC adapter for printer [EU] | 8248A | AC230V±10% | |
| Thermal paper for printer | 8247 | 10 rolls | |
| Carrying case | 9154 | for the main unit with testi leads and communication cable | |
| Description | Model | Specification |
|---|---|---|
| Temperature probes | 8405 | -40ºC - 500ºC (Surface type, Point material: Ceramic) |
| 8406 | -40ºC - 500ºC (Surface type) | |
| 8407 | -40ºC - 700ºC (Liquid, Semi-solid) | |
| 8408 | -40ºC - 600ºC (Air, Gas) |
