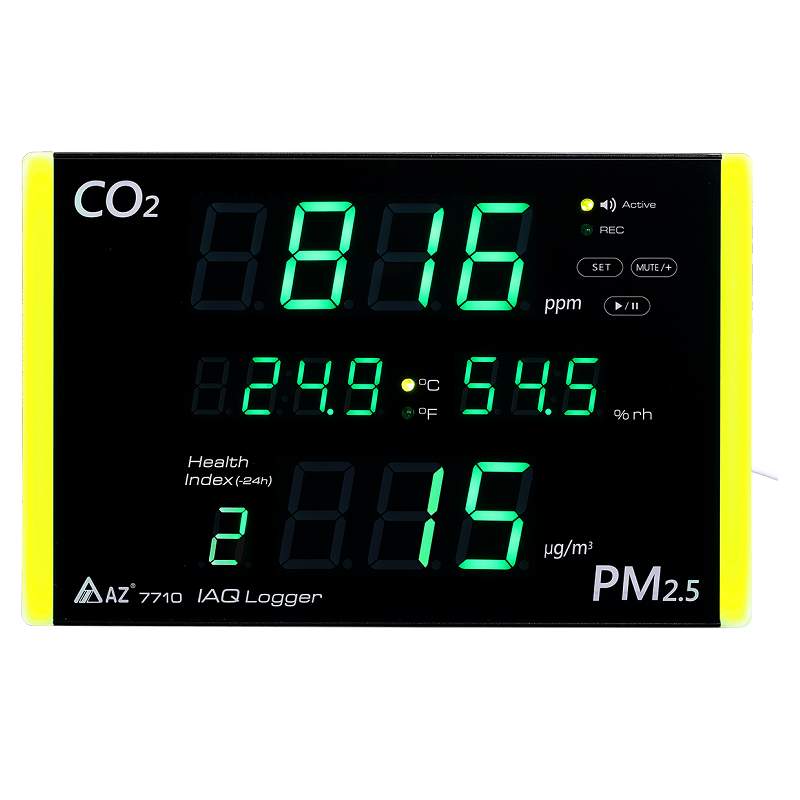

Máy đo CO₂ và chất lượng không khí AZ 7710

Model: AZ 7729
Hãng sản xuất: AZ Instrument
Xuất xứ: Taiwan
Bảo hành: 12 tháng
1₫
* Giá sản phẩm chưa bao gồm VAT
Tình trạng: Còn hàng
Điện thoại: 0976595968

Máy đo CO₂ và chất lượng không khí AZ 7710

Model: AZ 7710
Hãng sản xuất AZ Instrument
Xuất xứ Đài Loan
Bảo hành 12 Tháng
Thông số kỹ thuật:
Dải đo PM2.5: 0 ~ 999 µg/m³
Độ phân giải PM2.5: 1 µg/m³
Độ chính xác PM2.5: 0~100 µg/m³: ±10 µg/m³; 101~999 µg/m³: ±10% giá trị đo
Thời gian đáp ứng PM2.5: < 30 giây (đạt 90% thay đổi bước)
Dải đo CO₂: 0 ~ 9999 ppm
Độ phân giải CO₂: 1 ppm
Độ chính xác CO₂: ±40 ppm ±3% giá trị đo (400~2000 ppm); các dải khác: ±10% giá trị đo
Thời gian đáp ứng CO₂: < 30 giây (đạt 63% thay đổi bước)
Dải đo nhiệt độ: -10.0 ~ 60.0℃ (14.0 ~ 140.0℉)
Độ phân giải nhiệt độ: 0.1℃ / 0.1℉
Độ chính xác nhiệt độ: ±0.6℃ / ±0.9℉
Thời gian đáp ứng nhiệt độ: < 2 phút (đạt 90% thay đổi bước)
Dải đo độ ẩm: 0.1 ~ 99.9% RH
Độ phân giải độ ẩm: 1% RH
Độ chính xác độ ẩm: ±5% RH (ở 25℃, 10~90% RH); ±7% RH (ở 25℃, ngoài dải 10~90% RH)
Thời gian đáp ứng độ ẩm: < 20 phút (đạt 90% thay đổi bước)
Chức năng ghi dữ liệu tự động: Lưu trữ tới 12.000 lần đo
Cấp bảo vệ IP: IP20
Nguồn cấp: ổng USB Type-C, 5V DC
Mức tiêu thụ điện:  500 mA
Trọng lượng: 610 g
Kích thước thiết bị: 257 (D) × 168 (R) × 45.5 (C) mm
Phụ kiện tiêu chuẩn: Thiết bị chính, Sách hướng dẫn, Cáp USB Type-C, Bộ phụ kiện treo & lọc










7710 AZ EB

PM2.5 CO2 Data Logger

Features

7710 AZ PM2.5 CO2 RH% Temp. Datalogger features:
* Large LED displays PM2.5, Health index, CO2, humidity and temperature
* 12000 times auto logging. USB2.0 plug and play. No need to operate through specific software

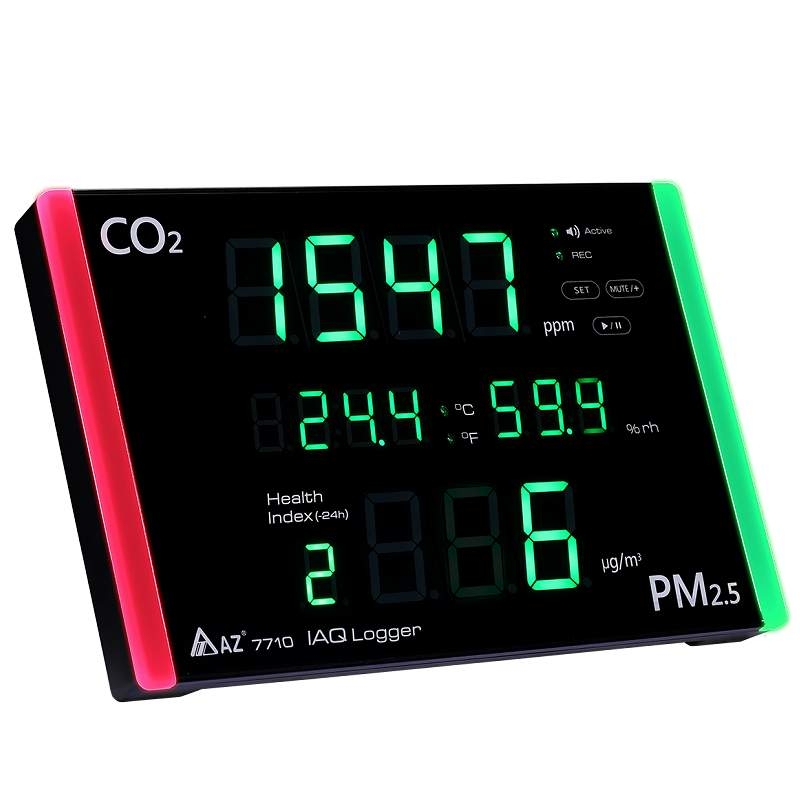

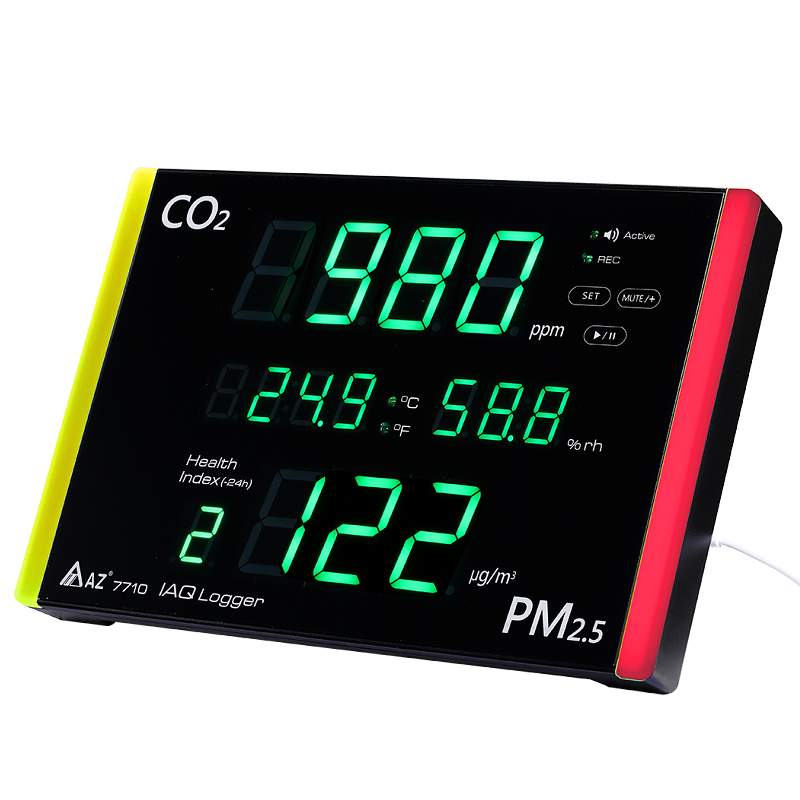

* Wall mount display with 3-color light bar to provide PM2.5/ CO2 hazardous level indicator from far distance
* High accuracy laser optical PM2.5 sensor
* NDIR (non-dispersive infrared) waveguide CO2 technology
* CO2 automatic background calibration(called ABC) for long time drift compensation

Application

Application of 7710 AZ PM2.5, CO2, Humidity, Temp. Data Logger:
The 7710 AZ PM2.5 CO2 Recorder has the potential to be used in a variety of settings where air quality monitoring is necessary to ensure a safe and healthy environment for people.

1 . Home and office environments:
The
7710 AZ PM2.5 CO2 Device can monitor indoor air quality, alerting occupants when the air quality becomes hazardous due to high levels of PM2.5 and CO2. This can help to prevent health issues caused by exposure to poor air quality.

2. Schools and educational institutions:
Schools and universities can use this device to monitor the air quality and provide a safe environment for students and staff.
7710 AZ PM2.5 CO2 datalogger has the large LED displays, students can also learn about air quality and its impact on health.

3. Hospitals and healthcare facilities:

7710 AZ PM2.5 CO2 Monitor can be used to monitor air quality in patient rooms, operating theaters, and other healthcare settings. 7710 AZ PM2.5 CO2 logger can help to prevent the spread of airborne infections and ensure a healthy environment for patients and healthcare workers.

4. Industrial settings:

7710 AZ PM2.5 CO2 Detector can monitor air quality in manufacturing facilities, warehouses, and other industrial settings. This can help to ensure a safe and healthy work environment for employees.

5. Public spaces:
The wall mount display with 3-color light bar can provide a visual indicator of the air quality in public spaces such as shopping malls, airports, and train stations.
7710 AZ PM2.5 CO2 Meter can help to raise awareness about air quality and encourage people to take steps to reduce their exposure to pollutants.


The 7710 AZ PM2.5 CO2 Recorder was being designed and manufactured by AZ Instrument, a well experienced manufacturer of PM2.5 CO2 Meter.

Specification

Specification of 7710 AZ PM2.5 CO2 Humidity Temp. Datalogger:

Model

7710

PM2.5 Range

0~999 ug/m3

PM2.5 Resolution

1 ug/m3

PM2.5 Accuracy

0~100 ug/m3: ±10 ug/m3,
101~999 ug/m3: ±10% of reading

PM2.5 Response Time

<30 seconds (90% of step change)

CO2 Range

0~9999 ppm

CO2 Resolution

1 ppm

CO2 Accuracy

±40 ppm ±3% of reading (400~2000ppm),
Other range is 10% of reading

CO2 Response Time

<30 seconds (63% of step change)

Temperature Range

-10.0~60.0℃ (14.0~140.0 ℉)

Temperature Resolution

0.1℃/℉

Temperature Accuracy

±0.6℃/±0.9℉

Temperature Response time

<2 mins (90% step change)

Humidity Range

0.1~99.9%RH

Humidity Resolution

1% RH

Humidity Accuracy

±5%RH (at 25℃, 10~90%RH)
±7%RH (at 25℃, Other range)

Humidity Response Time

<20 mins (90% step change)

Auto Logging

12000 times records

IP Rating

IP20

Operating

0~50℃, 0~95%RH(avoid condensation)

Storage

-20~50℃, 0~95%RH(avoid condensation)

Power Supply

5VDC USB Type C Port

Power Consumption

<500mA

Standard Package

Meter, Manual, USB Type C Cable
Hanging & Filterting accessories

Weight

610 g

Meter Size

257 (L) * 168 (W) * 45.5 (H) mm

Optional Accessory

100~240V to 5V@0.6A adaptor
with 4 plugs (US.EU.UK. AU)
