Máy đo nồng độ khí CO2, nhiệt độ, độ ẩm AZ 7787

Model: AZ 7787
Hãng sản xuất: AZ Instrument
Xuất xứ: Taiwan
Bảo hành: 12 tháng
1₫
* Giá sản phẩm chưa bao gồm VAT
Tình trạng: Còn hàng
Điện thoại: 0976595968

Máy đo nồng độ khí CO2, nhiệt độ, độ ẩm AZ 7787

Model: AZ 7787
Hãng sản xuất AZ Instrument
Xuất xứ Đài Loan
Bảo hành 12 Tháng
Thông số kỹ thuật:
Dải đo CO₂: 0 ~ 9999 ppm (2001~9999 ppm vượt ngoài dải đo chính xác)
Độ phân giải CO₂: 1 ppm
Độ chính xác CO₂: ±50 ppm ±5% giá trị đo (0~2000 ppm); các dải khác không được chỉ định
Thời gian đáp ứng CO₂: < 2 phút (đạt 90% thay đổi bước)
Thời gian khởi động cảm biến CO₂: 30 giây
Dải đo nhiệt độ không khí: -10 ~ 60℃ / 14 ~ 140℉
Độ phân giải nhiệt độ: 0.1℃ / 0.1℉
Độ chính xác nhiệt độ: ±0.6℃ / ±0.9℉
Thời gian đáp ứng nhiệt độ: < 2 phút (đạt 90% thay đổi bước)
Dải đo độ ẩm: 0.1 ~ 99.9% RH
Độ phân giải độ ẩm: 0.1% RH
Độ chính xác độ ẩm: ±5% RH (ở 25℃, 10~90% RH); các dải khác ±7% RH
Thời gian đáp ứng độ ẩm: < 10 phút (đạt 90% thay đổi bước)
Kích thước màn hình LCD: 60 (Cao) × 82 (Rộng) mm
Kích thước thiết bị: 120 (Đường kính) × 80 (Độ sâu) mm
Nguồn cấp: Adapter 5V DC (±10%), ≥500 mA
Trọng lượng: ~200 g
Phụ kiện tiêu chuẩn: Thiết bị chính, Sách hướng dẫn, Adapter 5V chuẩn universal, Hộp giấy đơn giản











7787 AZ EB

CO2 Temp. RH Monitor

Features

AZ 7787 CO2 & Temperature & Relative Humidity Monitor features:
* Advanced CO2 Meter-your best IAQ (Indoor Air Quality) Watcher
* 15 degree tilt angle for checking and reading easily
* One key touch to activate the logging mode
* Real time clock and calendar are displayed
* Warning carbon dioxide level from 1000-5000 ppm

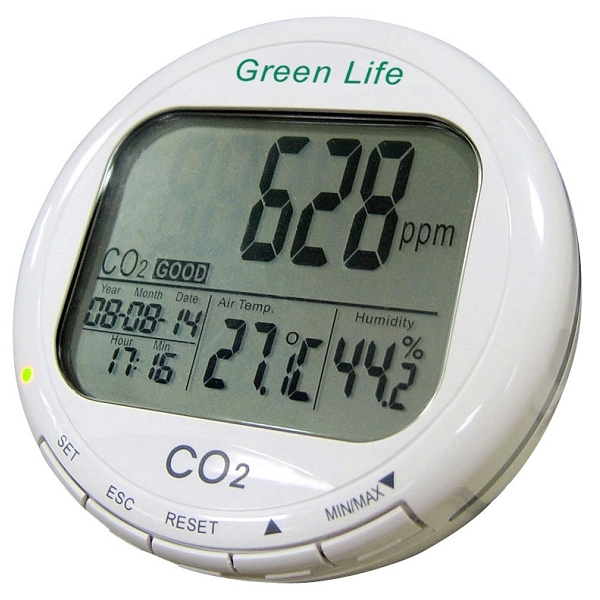

* Super large LCD display CO2 value (with good, normal, poor air quality indicator), Year-Month-Date, Hour-Minute, Air Temp. & Relative Humidity
* Max. / Min. Recall Function
* Temperature unit is switchable
* Real time clock is adjustable
* NDIR (Non-Dispersive Infrared) wave guide tech
* CO2 automatic background calibration (called ABC) for Long time drift compensation
* Bright LED visible indicate power is on
* Audible alarm warns CO2 Air Quality is poor
* Monitoring residential, commercial and home air quality

Application

Application of AZ 7787 CO2 & Temperature & Relative Humidity Monitor :
The 7787 AZ indoor air quality monitor could measure the indoor air quality, CO2 value, air temperature and humidity. It also could display the real time clock and calendar, so the 7787 could be your best IAQ (Indoor Air Quality) Watcher.

Poor indoor air quaintly is considered unhealthy because it causes tiredness, loss of ability to concentrate, and even illness (ex: sick building syndrome). IAQ monitoring and survey, especially on CO2 level and air ventilation become widely applied in public areas such as office, classroom, factory, hospital, work space, residential, commercial building and hotels. It is also suggested in regulations of industrial hygiene in some countries.

The 7787 AZ CO2 Temperature RH Instrument has the super big LCD to be the CO2 Monitor for the air quality index in all workspace, office, hospital, school, station or home. The 7787 AZ Desktop Carbon Dioxide Monitor is your best choice as the air quality testers.

AZ 7787 CO2 & Temperature & RH% Meter was being designed and manufactured by AZ Instrument, a well experienced manufacturer for Environmental Measuring Instrument.

Specification

Specification of AZ 7787 CO2 & Temperature & Relative Humidity Monitor :

Model

7787

CO2 Range

0~9999 ppm
(2001~9999 ppm out of scale range)

CO2 Resolution

1 ppm

CO2 Accuracy

±50 ppm ±5% of reading (0~2000 ppm),
other range are not specified

CO2 Response Time

<2 mins (90% step change)

CO2 Warm-up Time

30 Seconds

Air Temperature Range

-10~60℃, 14~140℉

Air Temperature Resolution

0.1℃, 0.1℉

Air Temperature Accuracy

±0.6℃, ±0.9℉

Air Temperature Response Time

<2 mins (90% step change)

Humidity Range

0.1~99.9% RH

Humidity Resolution

0.1% RH

Humidity Accuracy

±5%RH (at 25℃, 10~90%RH);
others ±7%RH

Humidity Response Time

<10 mins (90% step change)

LCD Size

60(H) * 82(W) mm

Meter Size

120(Diameter) * 80(Depth) mm

Operating Temperature

0~50℃

Operating RH%

5~80% RH (avoid condensation)

Storage Temperature

-20~50℃

Storage RH%

5~90% RH (avoid condensation)

Power Supply

5V DC Adaptor (±10%), ≧500 mA

Weight

~200g

Standard Package

Meter, Manual, , Plain Box
5V Universal Adaptor
