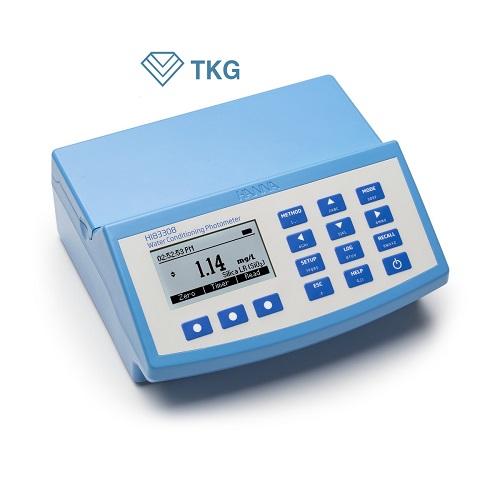

Water Conditioning Photometer - HI83308

HI83308 is a compact, multiparameter photometer for use in water conditioning applications. The meter is one of the most advanced photometers available with a innovative optical design that utilizes a reference detector and focusing lens to eliminate errors from changes in the light source and from imperfections in the glass cuvette. This meter has 23 different programmed methods measuring 15 key water quality parameters and also offers an absorbance measurement mode for performance verification and for users that would like to develop their own concentration versus absorbance curves. Water conditioning parameters include fluoride, chlorine, ammonia, manganese, copper, iron, silver and zinc.

To save valuable laboratory benchtop space, the HI83308 doubles as a professional pH meter with its digital pH/temperature electrode input. Now one meter can be used for both photometric and pH measurements.

Advanced optical system

Unparalleled performance from a benchtop photometer

Digital pH electrode input

Save valuable bench space with one meter that works both as a photometer and as a laboratory pH meter

Absorbance measuring mode

pH Range	Photometer: 6.5 to 8.5 pH pH electrode: -2.00 to 16.00 pH
pH Resolution	Photometer: 0.1 pH pH electrode: 0.01 pH
pH Accuracy	Photometer: ±0.1 pH pH electrode: ±0.01 pH
pH Calibration	Automatic one or two point calibration with one set of standard buffers available (4.01, 6.86, 7.01, 9.18, 10.01)
pH Temperature Compensation	Automatic (-5.0 to 100.0 oC; 23.0 to 212.0 oF); limits reduced based on the pH electrode used
pH CAL Check (electrode diagnostics)	clean electrode and check buffer/check probe displayed during calibration
pH Method	Photometer: phenol red
pH-mV Range	±1000 mV
pH-mV Resolution	0.1 mV
pH-mV Accuracy	±0.2 mV

Oxygen, Dissolved Range	0.0 to 10.0 mg/L (as O2)
Oxygen, Dissolved Resolution	0.1 mg/L
Oxygen, Dissolved Accuracy	±0.4 mg/L ±3% of reading
Oxygen, Dissolved Method	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Azide modified Winkler method

Absorbance Range	0.000 to 4.000 Abs
Absorbance Resolution	0.001 Abs
Absorbance Accuracy	+/-0.003Abs @ 1.000 Abs

Ammonia Range	Low Range: 0.00 to 3.00 mg/L Medium Range: 0.00 to 10.00 mg/L High Range: 0.0 to 100.0 mg/L (all as NH3-N)
Ammonia Resolution	0.01 mg/L; 0.1 mg/L
Ammonia Accuracy	Low Range: ±0.04 mg/L ±4% of reading Medium Range: ±0.05 mg/L ±5% of reading High range: ±0.5 mg/L ±5% of reading
Ammonia Method	Adaptation of the ASTM Manual of Water and Environmental Technology, D1426-92, Nessler method

Free Chlorine Range	0.00 to 5.00 mg/L (as Cl2)
Free Chlorine Resolution	0.01 mg/L
Free Chlorine Accuracy	±0.03 mg/L ±3% of reading
Total Chlorine Range	0.00 to 5.00 mg/L (as Cl2)
Total Chlorine Resolution	0.01 mg/L
Total Chlorine Accuracy	±0.03 mg/L ±3% of reading
Chlorine Method	Adaptation of the EPA 330.5 DPD method

Copper Range	Low Range: 0.000 to 1.500 mg/L (as Cu2+) High range: 0.00 to 5.00 mg/L (as Cu2+)
Copper Resolution	0.001 mg/L; 0.01 mg/L
Copper Accuracy	Low Range: ±0.01 mg/L ±5% of reading High Range ±0.02 mg/L ±4% of reading
Copper Method	Adaptation of the EPA bicinchoninate method

Fluoride Range	0.00 to 2.00 mg/L (as F-)
Fluoride Resolution	0.01 mg/L
Fluoride Accuracy	±0.03 mg/L ±3% of reading
Fluoride Method	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, SPADNS method

Iron Range	Low Range: 0.000 to 1.600 mg/L (as Fe) High Range: 0.00 to 5.00 mg/L (as Fe)
Iron Resolution	0.001 mg/L; 0.01 mg/L
Iron Accuracy	Low Range: ±0.01 mg/L ±8% of reading High Range: ±0.04 mg/L ±2% of reading
Iron Method	Low Range: Adaptation of the TPTZ Method High Range: Adaptation of Standard Methods for the Examination of Water and Wastewater, 3500-Fe B., Phenanthroline Method

Manganese Range	Low Range: 0 to 300 μg/L (as Mn) High Range: 0.0 to 20.0 (as Mn)
Manganese Resolution	1 μg/L; 0.1 mg/L
Manganese Accuracy	Low Range: ±10 μg/L ±3% of reading High Range: ±0.2 mg/L ±3% of reading
Manganese Method	Low Range: Adaptation of the PAN Method High Range: Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Periodate method

Molybdenum Range	0.0 to 40.0 mg/L (as Mo6+)
Molybdenum Resolution	0.1 mg/L
Molybdenum Accuracy	±0.3 mg/L ±5% of reading
Molybdenum Method	Adaptation of the mercaptoacetic acid method

Nickel Range	Low Range: 0.000 to 1.000 mg/L (as Ni) High Range: 0.00 to 7.00 g/L (as Ni)
Nickel Resolution	0.001 mg/L; 0.01 g/L
Nickel Accuracy	Low range: ±0.010 mg/L ±7% of reading High Range: ±0.07 g/L ±4% of reading
Nickel Method	Low Range: Adaptation of the PAN method High Range: Adaptation of the photometric method

Nitrate Range	0.0 to 30.0 mg/L (as NO3-- N)
Nitrate Resolution	0.1 mg/L
Nitrate Accuracy	±0.5 mg/L ±10% of reading
Nitrate Method	Adaptation of the cadmium reduction method

Phosphate Range	Freshwater Low Range: 0.00 to 2.50 mg/L (as PO43-) High range: 0.0 to 30.0 mg/L(as PO43-)
Phosphate Resolution	0.01 mg/L; 0.1 mg/L
Phosphate Accuracy	Low Range: ±0.04 mg/L ±4% of reading High Range: ±1 mg/L ±4% of reading
Phosphate Method	Low Range: Adaptation of the Ascorbic Acid method High Range: Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Amino Acid method

Silica Range	0.00 to 2.00 mg/L (as SiO2)
Silica Resolution	0.01 mg/L
Silica Accuracy	±0.03 mg/L ±3% of reading
Silica Method	Adaptation of the ASTM Manual of Water and Environmental Technology, D859, Heteropoly Molybdenum Blue method

Silver Range	0.000 to 1.000 mg/L (as Ag)
Silver Resolution	0.001 mg/L
Silver Accuracy	±0.020 mg/L ±5% of reading
Silver Method	Adaptation of the PAN method

Zinc Range	0.00 to 3.00 mg/L (as Zn)
Zinc Resolution	0.01 mg/L
Zinc Accuracy	±0.03 mg/L ±3% of reading
Zinc Method	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Zincon method

Input Channels	1 pH electrode input and 4 photometer wavelengths
pH Electrode	digital pH electrode (not included)
Photometer/Colorimeter Light Source	4 LEDs with 420 nm, 525 nm, 575 nm, and 610 nm narrow band interference filters
Photometer/Colorimeter Light Detector	silicon photodetector
Bandpass Filter Bandwidth	8 nm
Bandpass Filter Wavelength Accuracy	±1 nm
Cuvette Type	round, 24.6 mm
Number of Methods	128 max.
GLP	calibration data for connected pH electrode
Display	128 x 64 pixel LCD with backlight
Logging Type	log on demand with user name and sample ID optional input
Logging Memory	1000 readings
Connectivity	USB-A host for flash drive; micro-USB-B for power and computer connectivity
Power Supply	5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included)
Battery Type/Life	3.7 VDC Li-polymer rechargeable battery / >500 photometric measurements or 50 hours of continuous pH measurement
Environment	0 to 50.0 oC (32 to 122.0 oF); 0 to 95% RH, non-condensing
Weight	1.0 kg (2.2 lbs.)
Dimensions	206 x 177 x 97 mm (8.1 x 7.0 x 3.8")
Ordering Information	HI83308 is supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual.
