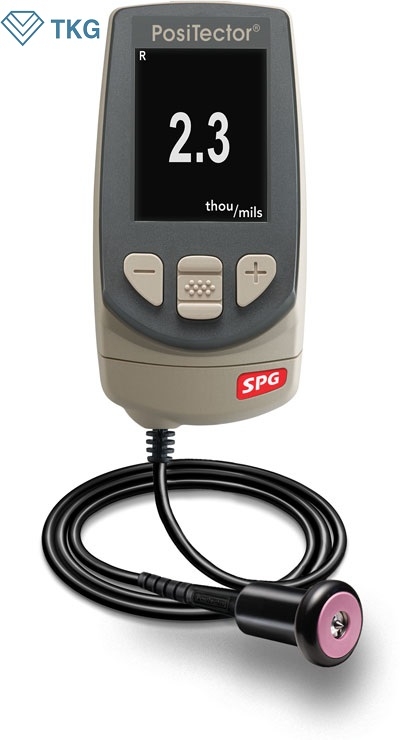

Máy đo độ nhám bề mặt PosiTector SPG S3 ( 0 – 500 μm)

PosiTector® SPG

Surface Profile Gages for Blasted Steel, Textured Coatings and Concrete Profile

Digital depth micrometer measures and records peak to valley surface profile heights

• Solvent, acid, oil, water, and dust resistant – weatherproof
• Alumina wear face and tungsten carbide tip for long life and continuous accuracy – field replaceable
• PosiTector interchangeable platform – attach any PosiTector probe to a single gage body
• Fast measurement rate of over 50 readings per minute – ideal for quickly and accurately measuring large surfaces
• USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
• Certificate of Calibration showing traceability to PTB included (Long Form)

Conforms to ASTM D4417-B, AS 3894.5-C (with optional 30° tip), U.S. Navy NSI 009-32, SANS 5772 and others

Features

Simple

• Fast measurement rate of over 50 readings per minute – ideal for quickly and accurately measuring large surfaces
• Enhanced one-handed menu navigation
• RESET feature instantly restores factory settings

Durable

• Alumina wear face and tungsten carbide tip for long life and continuous accuracy – field replaceable tips
• Solvent, acid, oil, water and dust resistant - weatherproof
• Rugged, indoor/outdoor instrument - ideal for field or shop use
• Shock-absorbing, protective rubber holster with belt clip
• Two year warranty on gage body AND probe

Accurate

• Certificate of Calibration showing traceability to PTB included (Long Form)
• Built-in temperature compensation ensures measurement accuracy
• Glass Zero Plate and metal check shim included
• Conforms to national and international standards including ASTM D4417 Method B and SSPC-PA17

Versatile

• 30º angle interchangeable probe tip available for special surface profile applications
• Cabled probes available for blasted steel, textured coatings and concrete profile
• Selectable display languages
• High contrast LCD with backlit display
• Flip display enables right-side-up viewing
• Uses alkaline or rechargeable batteries (built-in charger)
• Mils/Microns switchable

Powerful

• Statistics mode continually displays/updates average, standard deviation, min/max depth and number of readings while measuring
• HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
• FAST mode – faster measurement speed for quick inspection
• Sealed USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
• Software Updates via web keep your gage current
• Screen Capture – record and save image into USB flash memory for record keeping and review
• Software Solutions for viewing, analyzing & reporting data
• Every stored measurement is date and time stamped

See probe compatibility chart for more information.

Standard Models

Includes ALL features as shown on left plus...

• Storage of 250 readings per probe—stored readings can be viewed or downloaded

Advanced Models

Includes ALL features as shown on left plus...

• Storage of 100,000 readings in up to 1,000 batches and sub-batches
• SmartBatch™ allows entry of user-defined parameters and criteria to comply with various standards and test methods
• Live graphing of measurement data
• Onscreen Batch Annotation—add notes, change batch names and more with built-in QWERTY keyboard
• WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
• Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
• Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols

for Blasted Steel

MEASURING RANGE

0 – 500 μm        0 – 20 mils

ACCURACY

± (5 μm + 5%)
± (0.2 mil + 5%)

TIP

Angle: 60 Degree*
Radius: 50 μm (2 mils)

SPG 1

View PDF

SPG S1

View PDF

NEW SPG OS1^

View PDF

* 30 degree tips available for conformance to Australian standard AS3894.5-C

^ The PosiTector SPG OS is a surface profile gage ideal for measuring the peak-to-valley surface profile height of flat or convex surfaces with an OD above 3mm (0.125”) such as pipes and tanks.

for Textured Coatings

MEASURING RANGE

0 – 1500 μm       0 – 60 mils

ACCURACY

± (5 μm + 5%)
± (0.2 mil + 5%)

TIP

Angle: 60 Degree
Radius: 500 μm (20 mils)

SPG CS1

View PDF

for Concrete Profile

MEASURING RANGE

0 – 6 mm       0 – 250 mils

ACCURACY

± (25 μm + 1%)
± (1 mil + 1%)

TIP

Angle: 60 Degree
Radius: 500 μm (20 mils)

SPG TS1

View PDF

Accessories

PosiTector Probes

PosiTector bodies accept all PosiTector probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, hardness and ultrasonic thickness gage.

Learn MoreBluetooth Printer

Battery-operated and light weight, this Bluetooth Printer prints readings and statistical summaries via Bluetooth from Advanced models.

Learn MoreAC Power Kit

Use for continuous operation or battery charging. This kit supplies several alternate power solutions for your battery-operated PosiTector. Operate your gage without the need for batteries.

Learn MorePosiTector Case

Convenient hard shell case for carrying a PosiTector gage body and multiple probes

Learn MoreRechargeable Batteries

Precharged batteries ready to use with a considerably longer run time than conventional Nickel Cadmium batteries. High performance in low temperatures and no charger required.

Learn MoreProtective Lens Shield

Pack of 5 thin plastic lens shields to protect PosiTector display from paint overspray. One lens shield included in every PosiTector purchase.

Learn MoreNon-Certified Metal Shim & Glass Zero Plate

Provides a quick accuracy check of the instrument and allows the user to perform practice measurements

Learn MoreCertified SPG Standards

Used to verify the accuracy and operation of surface profile depth micrometers

Learn MoreReplacement Tungsten Carbide Probe Tips

Replacement probe tips - 2 angles available: 60° or 30°

Learn MorePelican Cases for PosiTector Inspection Kits

Heavy-duty, waterproof Pelican cases complete with a custom foam insert to securely hold your PosiTector instrument.

Learn MoreLarge V-groove Adaptor

For enhanced stability on 30 - 45 cm (12 - 18") OD pipes (for PosiTector SPG OS only).
