Máy kiểm tra muối bề mặt sơn Defesko SSTKITL3

PosiTector® SST

Soluble Salt Tester for measuring the concentration of soluble salts on metal surfaces

The PosiTector SST Soluble Salt Tester measures the concentration of soluble salts (salt contamination) on metal surfaces in accordance with ISO 8502-6, 8502-9.

• Conductivity probe specifically designed for ISO 8502-6, 9—the Bresle Method
• Displays test duration, sample temperature, conductivity (µS/cm) and surface density (mg/m2 or µg/cm2)
• Easy 1-2-3 gage interface guides users through the Bresle test method
• NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
• NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
• PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
• USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
• Certificate of Calibration showing traceability to NIST included (Long Form)

Features

Simple

• Conductivity probe specifically designed for ISO 8502-6,9—the Bresle Method

• Displays test duration, sample temperature, conductivity (µS/cm) and surface density (mg/m2 or µg/cm2)
• NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
• NEW On-gage help explains menu items at the touch of a button
• Easy 1-2-3 gage interface guides users through the Bresle test method
• Automatic storage of a background (blank) measurement—handy when performing multiple salt tests

Durable

• NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure

• NEW Ergonomic design with durable rubberized grip
• Shock-absorbing protective rubber holster for added impact resistance
• Two year warranty on gage body AND probe

Accurate

• Long Form Certificate of Calibration showing traceability to NIST included

• Includes certified conductivity standard (calibration solution) to verify probe accuracy. Certificate included.
• Automatic temperature normalization and sample temperature reporting
• Conforms to ISO 8502-6/8502-9, US Navy NSI 009-32, US Navy PPI 63101-000, AS 3894.6, IMO MSC.215(82), IMO MSC.244(83), SSPC Guide 15, ISO 11127-6, ASTM D4940

Versatile

• PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter

• Ideal for determination of water-soluble contaminants in non-metallic blast media

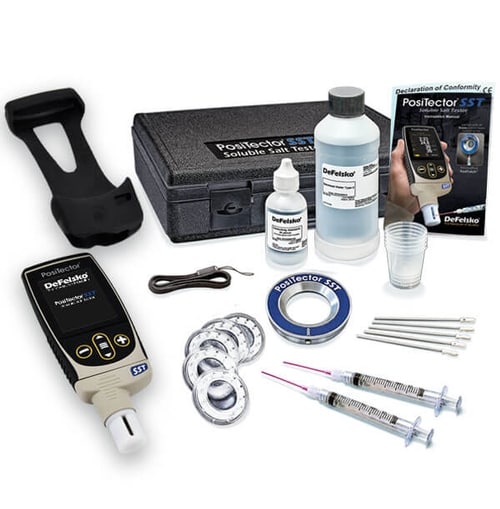

• A selection of kits include everything needed to retrieve and analyze soluble salts on surfaces
• Adjustable for various Bresle patch volumes
• Selectable display languages
• NEW Auto rotating display with Flip Lock

Powerful

• Track and record test duration in accordance with ISO 8502-6

• NEW Screen Capture—save 100 screen images for record keeping and review
• NEW Instant-on feature quickly powers up the gage if recently powered down
• NEW Up to 30% longer battery life
• USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
• PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
• Software Updates via web keep your gage current
• Includes PosiSoft suite of software for viewing and reporting data
• Every stored measurement is date and time stamped

Specifications

Range:

0 – 1,500 μS/cm
0 – 6,000 mg/m2
0.0 – 600.0 μg/cm2

Resolution:

1 μS/cm, 1mg/m2, 0.1 μg/cm2

Accuracy:

± 2 μS/cm (0 – 200 μS/cm)
± 10 μS/cm (>200 – 600 μS/cm)
± 20 μS/cm (>600 – 1500 μS/cm)

Temperature Range: 0 – 50° C (32 – 122° F)

Normalization Temperature: 25° C (77° F)

Test Cell Volume: 1 ml

Size:  127 x 66 x 25.4 mm (5" x 2.6" x 1")

Weight: 137 g (4.9 oz.) without batteries

* Hi Res Mode increases resolution to 0.1 μS/cm (0 - 200 μS/cm)
^ Size and weight are for the PosiTector gage body only and do not include the probe.
