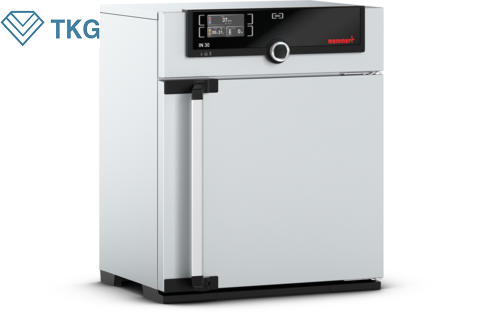

Tủ Ấm Memmert IF110
Model: IF110
Hãng sản xuất: MEMMERT
Xuất xứ: Germany
Bảo hành: 12 tháng
Ứng dụng:
Tủ ấm dòng I là nhà ở khắp nơi trong thế giới nghiên cứu, y học, dược phẩm và phân tích thực phẩm, cũng như hóa thực phẩm
Thông số kỹ thuật:
- Đối lưu cưỡng bức, một màn hình hiển thị
- Thể tích: 108 lít
- Kích thước trong: rộng 560 x cao 480 x sâu 400 mm
- Kích thước ngoài: rộng 745 x cao 864 x sâu 584 mm
- Số khay cung cấp: 2
- Số gờ để khay tối đa: 5
- Khả năng để tối đa/khay: 20 kg
- Khả năng để tối đa của tủ: 175 kg
- Khoảng nhiệt độ hoạt động: tối thiểu 10°C trên nhiệt độ môi trường đến 80°C
- Độ phân giải giá trị cài đặt: 0.1°C
- Sử dụng đầu dò nhiệt độ Pt100 DIN Class A
- Ngôn ngữ cài đặt: Đức, Anh, Tây Ban Nha, Pháp, Ba Lan, Czech, Hungary
- Bảng điều khiển ControlCOCKPIT: một màn hình hiển thị. Bộ điều khiển vi xử lý PID đa chức năng với màn hình màu TFT độ phân giải cao
- Thời gian cài đặt: bộ đếm ngược thời gian cài đặt có thể điều chỉnh từ 1 phút đến 99 ngày
- Chức năng setpointWAIT: thời gian được kích hoạt khi nhiệt độ đạt đến nhiệt độ cài đặt
- Hiệu chuẩn: có thể lựa chọn tự do 3 giá trị nhiệt độ
- Điều chỉnh các thông số: nhiệt độ (°C hoặc °F), vị trí cửa đối lưu khí, chương trình thời gian, múi giờ
- Đối lưu không khí tự nhiên
- Điều chỉnh hỗn hợp không khí tiền gia nhiệt bằng cách điều chỉnh nắp lấy khí 10%
- Chương trình được lưu trữ trong trường hợp mất điện
- Kiểm soát nhiệt: kiểm soát quá nhiệt bằng điện tử và bộ giới hạn nhiệt độ dạng cơ TB, cấp bảo vệ class 1 theo tiêu chuẩn DIN 12 880 tự ngắt khi nhiệt độ vượt quá khoảng 20°C trên nhiệt độ cài đặt
- Tự chẩn đoán để phân tích lỗi
- Cổng kết nối qua mạng Ethernet
- Cửa: cửa bằng thép không gỉ cách nhiệt hoàn toàn với 2 điểm khóa, cửa trong bằng kính
- Cấu trúc lớp vỏ bằng thép không gỉ, chống trầy, cứng và bền, phía sau bằng thép mạ kẽm.
- Bộ nhớ trong có khả năng lưu trữ ít nhất 10 năm
- Nguồn điện: 230 V, 50/60 Hz
- Công suất tiêu thụ: 1400 W
- Nhiệt độ môi trường: 5 – 40°C
- Độ ẩm: tối đa 80% rh, không ngưng tụ
Phụ kiện kèm theo:
+ Giấy chứng nhận hiệu chuẩn tại 37°C (Memmert cung cấp)
+ Khay lưới bằng thép không gỉ, 2 cái
+ Hướng dẫn sử dụng
Tủ Ấm Memmert IF110
Incubator IF110
The incubator I is at home everywhere in the world of research, medicine, pharmaceutics and food analytics, as well as food chemistry.
Standard delivery Incubator
The heating of this incubator is optimally tuned for forced air circulation; the fan can also be switched off completely, and valuable chamber loads for research, pharmaceutics, medicine and food chemistry are warmed up very carefully.
On this page, you can find all the essential technical data on our incubator. Our customer relations team will be pleased to help if you want further information. If you should require a customised special solution, please contact our technical specialists at myAtmoSAFE@memmert.com.
Temperature
| Working temperature range | min. 10°C above ambient up to +80°C |
|---|---|
| Setting accuracy temperature | 0.1 °C |
| Temperature | 1 Pt100 sensor DIN class A in 4-wire-circuit |
Control technology
| Language setting | German, English, Spanish, French, Polish, Czech, Hungarian |
|---|---|
| ControlCOCKPIT | SingleDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display |
| Timer | Digital backwards counter with target time setting, adjustable from 1 minute to 99 days |
| Function SetpointWAIT | the process time does not start until the set temperature is reached |
| Calibration | three freely selectable temperature values |
| adjustable parameters | temperature (Celsius or Fahrenheit), fan speed, air flap position, programme time, time zones, summertime/wintertime |
Ventilation
| Fan | forced air circulation by quiet air turbine, adjustable in 10 % steps |
|---|---|
| Fresh air | Admixture of pre-heated fresh air by electronically adjustable air flap |
| Vent | vent connection with restrictor flap |
Communication
| Documentation | programme stored in case of power failure |
|---|---|
| Programming | AtmoCONTROL software for reading out, managing and organising the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand). |
Safety
| Temperature control | adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature |
|---|---|
| Autodiagnostic system | for fault analysis |
Standard equipment
| Door | fully insulated stainless steel door with 2-point locking (compression door lock) |
|---|---|
| Internals | 2 stainless steel grid(s), electropolished |
| Works calibration certificate | incl. works calibration certificate for +37°C |
| Door | inner glass door |
Stainless steel interior
| Dimensions | w(A) x h(B) x d(C): 560 x 480 x 400 mm (d less 39 mm for fan) |
|---|---|
| Interior | easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides |
| Volume | 108 l |
| Max. number of internals | 5 |
| Max. loading of chamber | 175 kg |
| Max. loading per internal | 20 kg |
Textured stainless steel casing
| Dimensions | w(D) x h(E) x d(F): 745 x 864 x 584 mm (d +56mm door handle) |
|---|---|
| Housing | rear zinc-plated steel |
Electrical data
| Voltage Electrical load | 230 V, 50/60 Hz approx. 1400 W |
|---|---|
| Voltage Electrical load | 115 V, 50/60 Hz approx. 900 W |
Ambient conditions
| Set Up | The distance between the wall and the rear of the appliance must be at least 15 cm. The clearance from the ceiling must not be less than 20 cm and the side clearance from walls or nearby appliances must not be less than 5 cm. |
|---|---|
| Altitude of installation | max. 2,000 m above sea level |
| Ambient temperature | +5 °C to +40 °C |
| Humidity rh | max. 80 %, non-condensing |
| Overvoltage category | II |
| Pollution degree | 2 |
Packing/shipping data
| Transport information | The appliances must be transported upright |
|---|---|
| Customs tariff number | 8419 8998 |
| Country of origin | Federal Republic of Germany |
| WEEE-Reg.-No. | DE 66812464 |
| Dimensions approx incl. carton | w x h x d: 830 x 1050 x 800 mm |
| Net weight | approx. 76 kg |
| Gross weight carton | approx. 101 kg |
Option
| Option | Order No. | |
|---|---|---|
| Works calibration certificate for one (freely selectable) temperature value according to customer specification | D00109 | |
| Temperature restriction - Temperatures: +50, +55, +60, +65, +70 or +75 °C (Please, indicate upon ordering) | A8 | |
| Voltage 115 V, 50/60 Hz (no extra cost) | X2 | |
 | Fresh-air filter (filtration efficiency 80 %) mounted at the bottom (for UF/UFplus). For model sizes 30 – 260, subframe or subframe on castors obligatory | R8 |
 | Interior lighting for observing the load | R0 |
 | Entry port, 23 mm clear diameter, for introducing connections at the side, can be closed by flap, position left centre/centre | F0 |
 | Entry port, 23 mm clear diameter, for introducing connections at the side, can be closed by flap, position left centre top | F1 |
 | Entry port, 23 mm clear diameter, for introducing connections at the side, can be closed by flap, position right centre/centre | F2 |
 | Entry port, 23 mm clear diameter, for introducing connections at the side, can be closed by flap, position right centre top | F3 |
 | Entry port, 23 mm clear diameter for introducing connections at the side, can be closed by flap in special positions (please, state location) - left | F4 |
 | Entry port, 23 mm clear diameter for introducing connections at the side, can be closed by flap in special positions (please, state location) - right | F5 |
 | Entry port, 23 mm clear diameter for introducing connections, can be closed by flap in special positions (please, state location) - rear | F6 |
 | Entry port, 14 mm clear diameter, can be closed by flap, in special positions at the back (please, state location) | D6 |
 | Entry port, 38 mm clear diameter, can be closed by flap, in special positions at the back (please, state location) | F7 |
 | Entry port, 57 mm clear diameter, can be closed by flap, in special positions at the back (please, state location) | F8 |
| Extended overtemperature protection for SingleDISPLAY devices by additionally integrated Pt100 sensor for independent temperature monitoring for models IN/IF | A6 | |
| Interior socket (can only be ordered with limited temperature-range – max. +70°C - option A8 necessary) current carrying ampacity 230 V, 2.2 A can be switched off with the On/Off switch, cannot be switched individually, moisture tight IP68 (only with SingleDISPLAY) | R3 | |
| 4 – 20 mA current loop interface (0 to +90°C corresponds to 4 – 20 mA) Temperature controller actual value | V3 | |
| 4 – 20 mA current loop interface (0 to +90°C corresponds to 4 – 20 mA) Temperature of a Pt100 sensor positioned flexibly in chamber for external temperature monitoring (max. 1 SingleDISPLAY, max. 3 TwinDISPLAY) | V6 | |
| Fan speed monitoring with switching off the heating and with alarm in case of failure – optional for IFplus only | V4 | |
 | Works calibration certificate for 3 temperatures: +37°C, +52°C, +70°C. Standard works calibration certificate (measuring point chamber centre) at +37°C | D00126 |
 | Door with lock (safety lock), Standard with SN/SF and SNplus/SFplus 450 and 750 | B6 |
| Door hinged on the left | B8 | |
 | Potential-free contact (24 V/2 A) with socket to NAMUR NE 28 for external monitoring (indicates when setpoint is reached) | H5 |
 | Potential-free contact for combination error message (e.g. supply failure, sensor fault, fuse) | H6 |
 | Potential-free contact (24 V/2 A) with socket to NAMUR NE 28, for signal generation, controlled by programme segment, for free-selectable functions to be activated (e.g. activation of audible and visual signals, exhaust motors, fans, stirrers, etc. Only for units with TwinDISPLAY; max 2 contacts on 1-phase appliances; max 4 contacts on 3-phase appliances, 2 contacts | H72 |
| Process-dependent programmable door lock (only for units with TwinDISPLAY) | D4 | |
| Door-open-recognition (only for units with TwinDISPLAY) | V5 | |
 | Flexible Pt100 for positioning in chamber or in load with socket, 4-pin, according to NAMUR NE 28, for external temperature recording (load temperature) max. 3 sensors | H4 |
 | Additional Pt100 temperature sensor, positioned flexibly in chamber or load, for local temperature measurement (up to 2 additional sensors are possible). The measured temperature can, if required, be indicated on the display, recorded in the integral ring store, and can be documented via the AtmoCONTROL software. | H8 |
| MobileALERT, notification by SMS in case of any error or alarm of the device. Requires option H6 “floating contact for alarm” | C3 | |
 | Castor frame (2-part), height 140 mm | R9 |
Accessory
| Accessory | Order No. | |
|---|---|---|
| Accessory | Order No. | |
 | Stainless steel grids, electropolished (standard equipment) | E28884 |
| Reinforced stainless steel grid, max. loading 60 kg, from size 450 with guide bars and fixing screws and only in connection with option K1 | - | |
 | Perforated stainless steel shelf | B29727 |
 | Reinforced perforated stainless steel shelves, max. loading 60 kg, with guide bars and fixing screws and only in connection with option K1 | - |
| Max. loading per slide-in drip tray (kg) | 1,5 | |
| Max. loading per bottom drip tray (kg) | 1,5 | |
 | Wall bracket for wall mounting | B29755 |
| Stainless steel slide-in drip tray, 15 mm rim (may affect the temperature distribution) - cannot be used in connection with option K1 | E02070 | |
| Stainless steel bottom drip tray, 15 mm rim (may affect the temperature distribution) - cannot be used in connection with option K1 | B04356 | |
| Guarantee extension by 1 year | GA1Q5 | |
| USB-Ethernet adapter | E06192 | |
| Ethernet connection cable 5 m for computer interface | E06189 | |
| USB User-ID stick (with User-ID licence): Oven-linked authorisation licence (User-ID-programme) on Memory-stick, prevents undesired manipulation by unauthorised third parties. When reordering please specify serial number (only for units with TwinDISPLAY) | B33170 | |
| USB stick with documentation software AtmoCONTROL and operation manual for products with SingleDISPLAY (the standard equipment of appliances with TwinDISPLAY includes one USB stick with AtmoCONTROL) | B33172 | |
| Set of height adjustable feet (4 pcs). Standard on models ICOmed | B29768 | |
 | Stacking set (4 pcs) for stacking of appliances of same size (not for models 160, 260, 450, 750, 1060, ICH110, ICH110L and ICH110C) | B29744 |
 | Plug-in tube extension (outer diam. 60,3 mm, inner 57 mm), straight, for exhaust air ducting (if necessary for connection by hose), only models U, I, S | B29718 |
 | Plug-in tube extension (outer diam. 60,3 mm, inner 57 mm), angled, for exhaust air ducting (if necessary for connection by hose), only models U, I, S | B29719 |
 | Flush-fit unit (stainless steel frame covering gap between oven and wall opening), with air slots – technical clarification required | B29728 |
 | Flush-fit unit (stainless steel frame covering gap between oven and wall opening), without air slots – technical clarification required | B29729 |
 | Subframe, adjustable in height (size 30 to 75: height 600 mm, size 110 to 450: height 500 mm) | B29745 |
 | Subframe, on castors (size 30 to 75: height 660 mm, size 110 to 160: height 560 mm) | B29746 |
| Subframe, adjustable in height (height 130 mm, for example for units with fresh-air filter) | B33657 | |
| Software conforming to FDA “AtmoCONTROL“. Meets the requirements for the use of electronically stored data sets and electronic signatures as laid down in Regulation 21 CFR Part 11 of the US Food and Drug Administration (FDA). Base licence for the control of one unit (only for units with TwinDISPLAY). Respective IQ/OQ documents available in German and English language (without surcharge). | FDAQ1 | |
| Integration of one additional unit (up to max. 15 units) into an already existent FDA-software licence | FDAQ2 | |
| IQ document with device-specific works test data, OQ/PQ check list as support for validation by customer | D00124 | |
| IQ/OQ document with works test data for chamber, incl. temperature distribution survey for one free-selectable temperature value. 9 measuring points (size 30), 27 measuring points (sizes 55 - 1060) to DIN 12880:2007-05 (further temperature values on demand), PQ check list as support for validation by customer | D00125 | |
| IQ/OQ document with device-specific works test data for one free-selectable temperature and humidity value, incl. temperature distribution survey at Memmert for 27 measuring points (26 measuring points on model HPP1400) to DIN 12880:2007-05, PQ check list as support for validation by customer (models HPP and ICH). | ||
| IQ/OQ document with works test data for chamber, incl. temperature distribution survey for one free-selectable temperature, humidity and light value. 27 measuring points to DIN 12880:2007-05, PQ check list as support for validation by customer (models HPP with light and ICH L) | ||
| External measuring instrument with sensors for daylight and UV-light. Product information on demand (models HPP, ICH L, IPPplus) | B04713 | |
| External measuring instrument with sensors with additional measuring head for temperature and humidity measurement. Product information on demand (models HPP, ICH, ICH L, ICH C, IPPplus and ICOmed) | B04714 |
