Bộ ghi dữ liệu Hioki HiLOGGER LR8401-20 (LR8501)

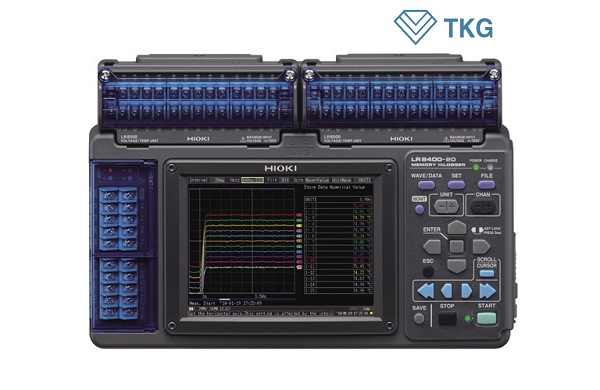

MEMORY HiLOGGER LR8400 Series

Portable Handheld 30- to 60- channel Data Loggers with 10ms Simultaneous Sampling

Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)

Analog input Universal unit LR8501 Actual functionality will depend on combination of units installed Note: Isolated from each channel to chassis	[No. of channels] 15 analog channels; isolated scanning method input (4 terminals: push-button type) [Voltage] ±10 mV to ±100 V, 1-5 V f.s. Max. resolution: 500 nV, (Isolated between channels and from each channel to chassis) [Temperature: Thermocouples] -200 ˚C to 2000 ˚C (depends on sensor), Thermocouples (K, J, E, T, N, R, S, B, W,) Max. resolution 0.01 ˚C, (Isolated between channels and from each channel to chassis) [Temperature: Pt 100, JPt 100 sensor] -200 ˚C to 800 ˚C, Max. resolution 0.01 ˚C, (Not isolated between channels) [Resistance] 0 Ω to 200 Ω f.s. Max. resolution 0.5 mΩ, (Not isolated between channels) [Humidity] 5.0 to 95.0 % rh (use with optional sensor), resolution 0.1 % rh, (Not isolated between channels nor from each channel to chassis) [Max. rated voltage between isolated input channels] 300 V DC [Max. allowable input] ±100 V DC [Max. rated voltage from isolated terminals to ground] 300 V AC, DC
Analog input Votage/temp unit LR8500 Actual functionality will depend on combination of units installed Note: Isolated from each channel to chassis	[No. of channels] 15 analog channels; isolated scanning method input (2 terminals: M3 screw type) [Voltage] ±10 mV to ±100 V, 1-5 V f.s. Max. resolution: 500 nV, (Isolated between channels and from each channel to chassies) [Temperature: Thermocouples] -200 ˚C to 2000 ˚C (depends on sensor), Thermocouples (K, J, E, T, N, R, S, B, W), Max. resolution 0.01 ˚C, (Isolated between channels and from each channel to chassies) [Pt 100, JPt 100 sensor] [Resistance] Not available [Humidity] 5.0 to 95.0 % rh (use with optional sensor), resolution 0.1 % rh, (Not isolated between channels nor from each channel to chassies) [Max. rated voltage between isolated input channels] 250 V DC [Max. allowable input] ±100 V DC [Max. rated voltage from isolated terminals to ground] 300 V AC, DC Caution: Max. voltage from terminals to ground without damage
Pulse, Digital input	[No. of channels] 8 channels, pulse / digital selectable for each channel, M3 screw terminal, not isolated, common ground [Pulse totalization] 0 to 1000 M pulse, 1 range (No-voltage 'a' contact; normally open, open collector or voltage input), Max. resolution 1 pulse [Rotation count] 0 to 5000 /n (r/s) f.s. 1 range (same as Pulse totalization input signal condition), resolution 1/n (r/s) Note: "n" is the number of sensor output pulses per revolution, 1 to 1000 [Digital input] Record logical "1" or "0" at each sampling [Max. rated voltage between input channels] Not isolated [Max. allowable input] 0 to 50 V
Recording intervals	10 ms to 50 ms, 100 ms to 1 hour, 19 selections (All input channels are scanned within each recording interval.) Note: limited by using channels at 10 ms to 50 ms interval
Digital filter	Select from OFF/ 50 Hz/ 60 Hz (the cut-off frequency is automatically set)
Data storage	Internal memory: 8 M-words, Data storage media: CF card or USB memory (Only data recorded to a genuine HIOKI CF card is guaranteed)
LAN interfaces	100BASE-TX, Functions: Data acquisition using bundled software or PC commands, FTP server, FTP client, HTTP server function, or E-mail system
USB interfaces	USB 2.0 High-speed capable, series mini-B receptacle Functions: Data acquisition using bundled software or PC commands, Transfer data from the CF card to a PC via USB drive mode Note: Data transfer not possible from USB memory sticks
Display device	5.7 inch TFT color liquid crystal display (640 × 480 pixel)
Other functions	Save waveform data in real time to the CF card or USB memory stick, Numerical value calculations, Waveform calculations, and others
AC Power supply	Using the AC adapter 9418-15 (100 to 240 V AC, 50/60 Hz), 7 VA
DC Power supply	Using the Battery pack Z1000 (optional accessory), Continuous use 5 hr, External power: 10 to 28 V DC (Please contact your HIOKI distributor for connection cord)
Dimensions and Mass	272 mm (10.71 in) W × 182.4 mm (7.18 in) H × 66.5 mm (2.62 in) D,  1.8 kg (63.5 oz), (LR8400-20 main unit, excluding the Battery Pack 370 g/ 13.1 oz)
Accessories	Instruction manual ×1, Measurement guide ×1, CD-R (data collection software "Logger Utility") ×1, USB cable ×1, AC adapter 9418-15 ×1

Combination status with LabVIEW or MATLAB script

Compatible models	LabVIEW	MATLAB script
LR8400-20	OK	N/A
LR8401-20	OK	N/A
LR8402-20	OK	N/A





Input modules

VOLTAGE/TEMP UNIT LR8500

2 terminals M-3 mm screw type, 15 channels, Voltage, Temperature with thermocouple, or Humidity measurement, for the LR8400 series

UNIVERSAL UNIT LR8501

4 terminals push-button type, 15 channels, Voltage, Temperature with thermocouple, Platinum Resistance temperature sensor, Humidity, or Resistance measurement, for the LR8400 series

Input options

Thermocouple
*For reference only. Please purchase locally.

HUMIDITY SENSOR Z2000

3 m (9.84 ft) length

Storage media

* Supplied with PC Card adapter

PC Card Precaution
Use only PC Cards sold by HIOKI. Compatibility and performance are not guaranteed for PC cards made by other manufacturers. You may be unable to read from or save data to such cards.

PC CARD 512M 9728

• 512 MB capacity • PC card adapter bundled

Learn more

PC CARD 1G 9729

• 1 GB capacity • PC card adapter bundled

Learn more

PC CARD 9830

• 2 GB capacity • PC card adapter bundled

Learn more

Power supply

*AC adapter is bundled with the LR8400 series

AC ADAPTER 9418-15

100 to 240V AC

BATTERY PACK Z1000

NiMH, Charges while installed in the main unit

Carrying cases and stands

CARRYING CASE C1000

For the LR8400 series, for storing options

FIXED STAND Z5000

For wall hanging and slanted bench mounting

High voltage measurement

* Maximum input-to-ground rated voltages fall within these products’ specifications ranges (and do not affect the connected input units)

DIFFERENTIAL PROBE P9000

• Waveform only for exclusive use with Memory HiCorders (P9000-01) or waveform/RMS value switchable (P9000-02) • For use with input of up to 1 kV AC/DC • Requires separate power supply

Learn more

AC ADAPTER Z1008

100 to 240V AC

Options for Differential Probe

Can also be used with accessories such as L4936/L4937/L4931 as available for other testers.

GRABBER CLIP 9243

Attaches to the tip of the banana plug cable, Red/ Black: 1 each, 196 mm (7.72 in) length, CAT III 1000 V

CONVERSION CABLE L1011

30 cm (0.98 ft) length, covert BNC to wire

CONVERSION CABLE L1011-10

2.4 m (7.87 ft) length, covert BNC to wire

Custom cable

*For the P9000

Inquire with your Hioki distributor.
(1) Bus powered USB cable
(2) USB(A)- Micro B cable
(3) 3-prong cable

PC peripherals

LOGGER UTILITY is a bundled software

LOGGER UTILITY SF1000

• For the HIOKI Memory HiLoggers • The control of the measurement of loggers, real-time data collection • Wavefrorm display, data conversion, calculation, search, print

Learn more

GENNECT CROSS SF4000

• Software automatically recognizes LAN-connected measuring instrument • Display acquired data as graphs in real-time • Windows compatible

Learn more

LAN CABLE 9642

Straight Ethernet cable, supplied with straight to cross conversion adapter, 5 m (16.41 ft) length
