Máy đo độ rung HUATEC HG-6500ANC (10Hz ~ 10KHz, đo nhiệt độ)

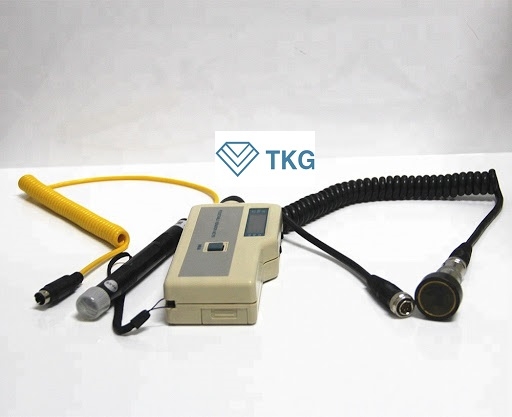

Mini 9V 10HZ - 10KHz Vibration Meter Temperature Instrument HG-6500AN

Description:

HG-6500 Pocket vibration (temperature) instrument, mainly used in machinery and equipment vibration displacement, velocity (intensity) and the acceleration, temperature parameters of the measurement instrument in the bearing housing using the measured data, the control of international standard ISO2372 , Or the use of enterprises, the standard machine, you can determine the equipment (fans, pumps, compressors, motors, etc.) in which the current state (well, pay attention or dangerous, etc.).

Specifications
Sensors:  one rotary shear accelerometer
              Split charge amplifier built-in shear accelerometer
Range:    Acceleration 0.1 ~ 199.9m/s2 (single peak) (5 or 10 ~ 1KHz; 1K ~ 10KHz)
                  Speed ​​of 0.1 ~ 199.9mm / s (RMS) (5 or 10 ~ 1KHz)
                 Displacement of 0.001 ~ 1.999mm (peak) (5 or 10 ~ 1KHz)
                  Temperature 0 ℃ ~ 400 ℃
 Accuracy: 5% ± 2 vibration words
                   Temperature 1% ± 1 word
 Display:  LCD display three and a half
Maintain the characteristics: measurement value is automatically maintained, automatic shutdown delay
Signal Output: AC 2V peak (full scale and the load is greater than 10K ohms)
Power: 9V laminated battery 1 can be used continuously 25 hours
Body volume: 185mm × 68mm × 30mm
 Weight: 200g
