Delmhorst offers a wide assortment of electrodes known throughout the industry for their durability. All Delmhorst electrodes fit any Delmhorst moisture meter. Below are electrodes that are typically used for this model:

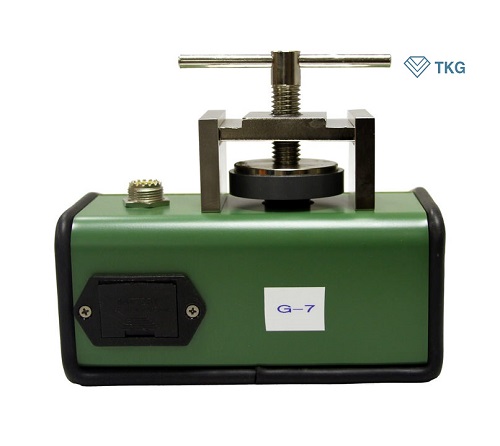

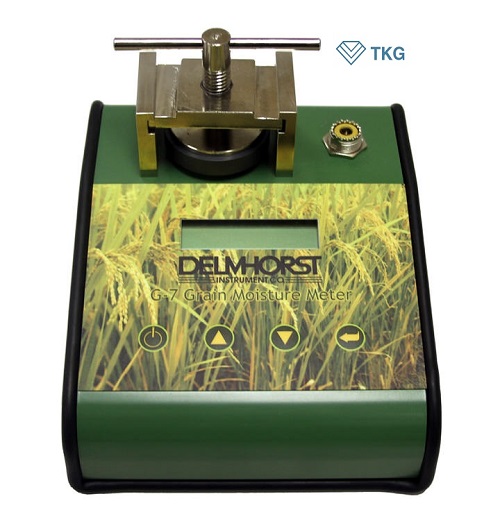

The 1900 is the standard upper electrode assembly for the G-7 grain moisture meter. The 1900 has a serrated face, and is used with 313CUP-0005 sample cup.
313CUP-0005 Sample Cup
The 313CUP-0005 is a replacement sample cup for G-7 grain moisture meter. Used with 1900 upper electrode assembly.
313CUP-0006 Sample Cup
The 313CUP-0006 is a replacement sample cup with smooth surface for checking flour using the G-7 grain moisture meter. Used with 315ELE-0024 upper electrode assembly.
The 315ELE-0024 is similar to the 1900 except with a smooth surface for testing flour or granular material. Used with 313CUP-0006 sample cup.
Prods for testing standard and high density bales (requires H-4 Handle).
- 830-2 – 10” prod
- 830-3 – 18” prod
- 830-4 – 36” prod
- 830-5 – 12” for hops
831 Short Pin Prod
For testing hay in the windrow (requires H-4 Handle).
Long pin prod – for testing grain in bulk (requires H-4 Handle).
Electrode handle that attaches to the built-in connector on the top of any moisture meter. Can be used with the 830 series prods, 831 short pin disc shaped prod, and 832 long pin disc shaped prod. This is useful for large or high density bales of hay or scrap paper. Two handed operation is recommended over using a prod that connects directly to the top of the meter (like our 1235 series) to minimize stress placed on the meter casing.
