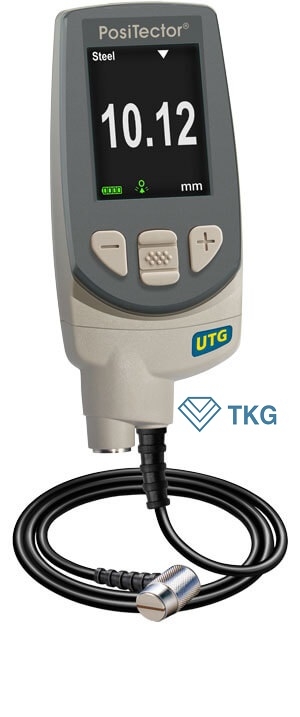

Máy đo độ dày vật liệu PosiTector UTG C1 (1.00 to 125.00 mm)

PosiTector® UTG

Ultrasonic Thickness Gages Measures Wall Thickness

Measures the wall thickness of materials such as steel, plastic and more using ultrasonic technology. Ideal for measuring the effects of corrosion or erosion on tanks, pipes or any structure where access is limited to one side. Multiple echo (UTG M) Thru-Paint models measure the metal thickness of a painted structure without having to remove the coating.

• Precision ultrasonic transducers provide fast, accurate readings
• Solvent, acid, oil, water, and dust resistant – weatherproof
• Pre-programmed velocities – Simply select from a list of common materials or enter your own with ease
• Min Scan mode—take continuous readings and record min/max thicknesses — ideal for quick inspection over a large area
• PosiTector interchangeable platform – attach any PosiTector probe to a single gage body
• USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software

Conforms to ASTM E797

Features

Simple

• Large, easy-to-read, graphics LCD
• Pre-programmed velocities – Simply select from a list of common materials or enter your own with ease
• Smart Couple™ – Eliminates inadvertent decoupling - ideal for analyzing large areas using multiple passes
• Enhanced one-handed menu navigation
• Flashing display — ideal in a noisy environment
• RESET feature instantly restores factory settings

Durable

• Braided stainless steel cable and heavy-duty strain reliefs for demanding applications (PosiTector UTG CX only)
• Impact resistant lens
• Wear-resistant probe tip
• Shock-absorbing, protective rubber holster with belt clip
• Two year warranty on gage body AND probe

Accurate

• Precision ultrasonic transducers provide fast, accurate readings
• Certificate of Calibration (Long Form) showing traceability to NIST included
• Conforms to national and international standards including ASTM E797
• Built-in temperature compensation ensures measurement accuracy

Versatile

• High contrast LCD with backlit display
• Single or two point adjustment
• Inch/mm switchable
• Selectable display languages
• Flip display enables right-side-up viewing
• Extended cables available (up to 20 m/60 ft) for underwater or remote measuring
• Uses alkaline or rechargeable batteries (built-in charger)

Powerful

• Min Scan mode—take continuous readings and record min/max thicknesses — ideal for quick inspection over a large area
• Statistics Mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
• HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
• Sealed USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included
• Software Updates via web keep your gage current
• Screen Capture – record and save image into USB flash memory for record keeping and review
• Software Solutions for viewing, analyzing & reporting data
• Every stored measurement is date and time stamped

See probe compatibility chart for more information.
