Máy đo độ dày bằng siêu âm Extech TKG100 (1.0-508mm)

Model: TKG100
Hãng sản xuất: Extech
Xuất xứ: USA.
Bảo hành: 12 tháng
38.500.000₫
* Giá sản phẩm chưa bao gồm VAT
Tình trạng: Còn hàng
Điện thoại: 0976595968

Model: TKG100
Hãng sản xuất: Extech - Mỹ
Xuất xứ: USA
Bảo hành: 12 tháng
Thông số kỹ thuật:
- Giải đo độ dày (trên thép):
+ Đầu đo 5MHz: 1.0 đến 508mm
+ Đầu đo 10MHz: 0.50 đến 508mm (Chọn mua thêm)
- Ngôn ngữ: English, French, Spanish, Italian, Czech, German, Portuguese, Slovak, Finnish, and Hungarian
- Chức năng: Hold Mode, Freeze Mode , Fast Min/Max mode
- Đơn vị:  Inches/Millimeters/Microseconds
- Cảnh báo chiều sâu Min/Max:  tiếng kêu, flash,  báo dung
- Bàn phím phát quang: F1 = đỏ, F2 = vàng, F3 =xanh
- Tuổi thọ pin: lên đến 50h
Cung cấp kèm theo: 2 chai chất tiếp âm, 2 pin AA, cảm biến 5MHz, Hộp đựng, HDSD

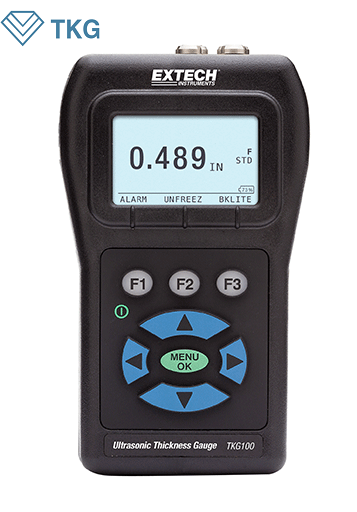

Extech TKG100: Digital Ultrasonic Thickness Gauge

Compact rugged meter for non-destructive thickness measurements

Extech offers Thickness Gauges designed in compact, handheld, rugged housing ideal for field use. The ultrasonic technology allows for non-destructive thickness measurements for primarily steel structures. Complete with 2oz bottle of coolant, 2 AA batteries, 5MHz Transducer and hard carrying case.

Specifications Range
Steel Thickness Range 5MHz probe: 0.040 to 20" (1.0 to 508mm); 10MHz probe: 0.030" to 2" (0.76mm to 50.8mm)
Material velocity calibration range 0.200 to 0.7362 in/μS (0.508 to 18.699mm/μS)
Languages English, French, Spanish, Italian, Czech, German, Portuguese, Slovak, Finnish, and Hungarian
Hold Mode Holds display to retain last thickness reading with reverse video display
Freeze Mode Freezes display (ideal for high temperature readings)
Fast Min/Max Mode Displays Min or Max and actual thickness value at 20 measurements/sec
Units Inches/Millimeters/Microseconds
Alarms
Illuminating Keypad F1 = Red, F2 = Yellow, F3 = Green for easy, go/no-go testing
Gain - Variable adjustment
B-Scan - Displays a cross section of the test piece
Echo to Echo
Differential Mode
Velocity Mode
Datalogger
Range
Rectification Modes
Live Waveform (A-Scan)
Battery Life Up to 50 hrs (20hrs w/backlighting)
